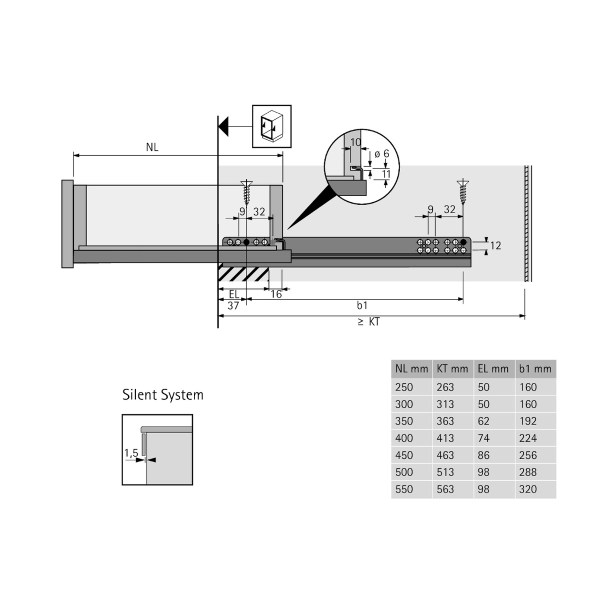

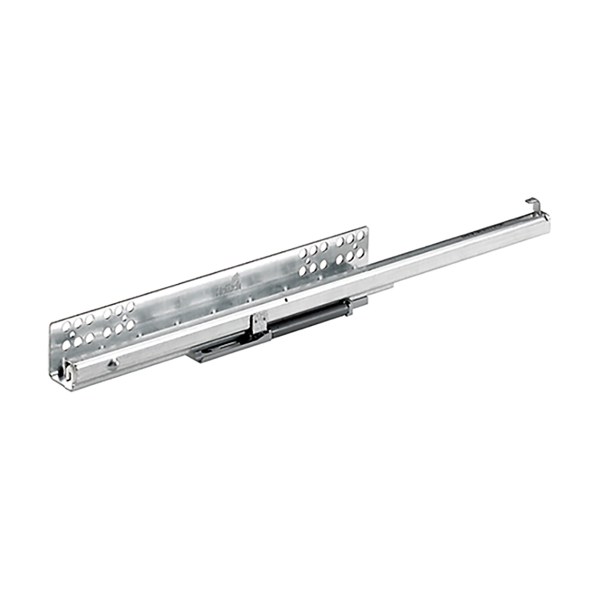

Hettich Quadro 25 with Silent system Load capacity kg 25 kg Installed width EB 23 Hole spacing b1 192 mm (350), 224 mm (400), 256 mm(450), 288 mm(500) Nominal length 350 mm, 400 mm, 450 mm, 500 mm Mounting side left right Type of runner Concealed runner Type of drawer runner Partial extension runner User friendly features Silent System Minimum cabinet body depth KT 363 mm (350), 413 mm (400), 463 mm (450), 513 mm (500) Type of installation slide on installation Installed width (side profile thickness) EB 23 (drawer side profile thickness ≤ 19mm) Load capacity kg 25 kg
