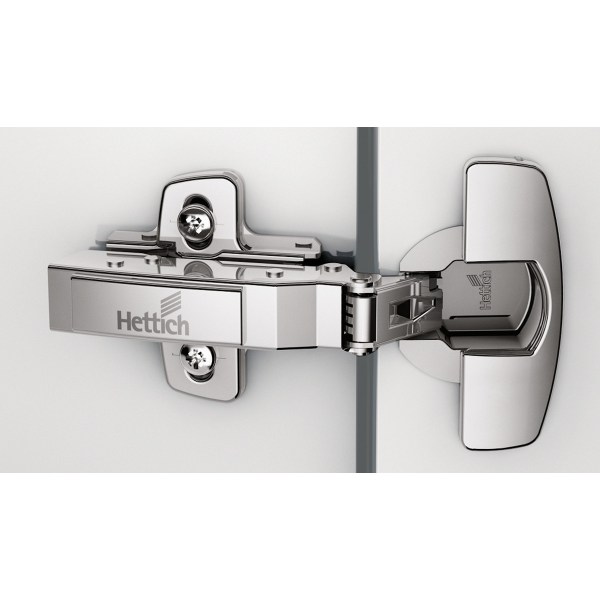

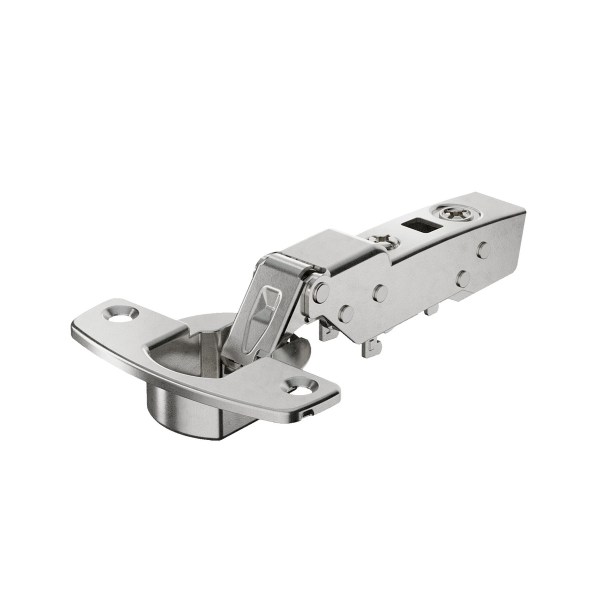

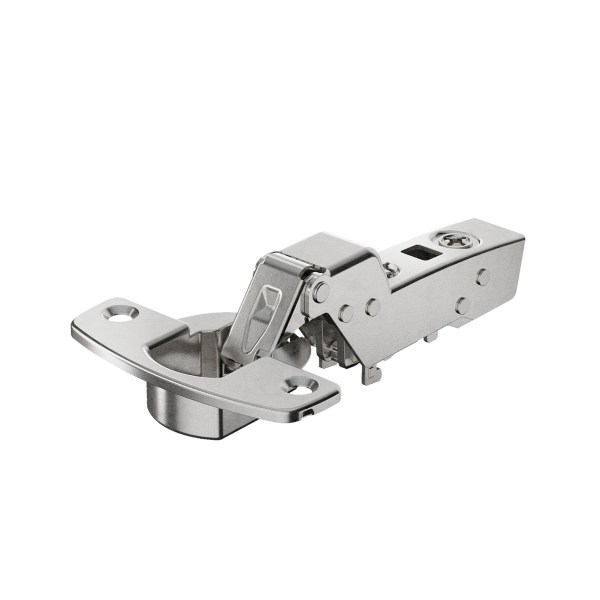

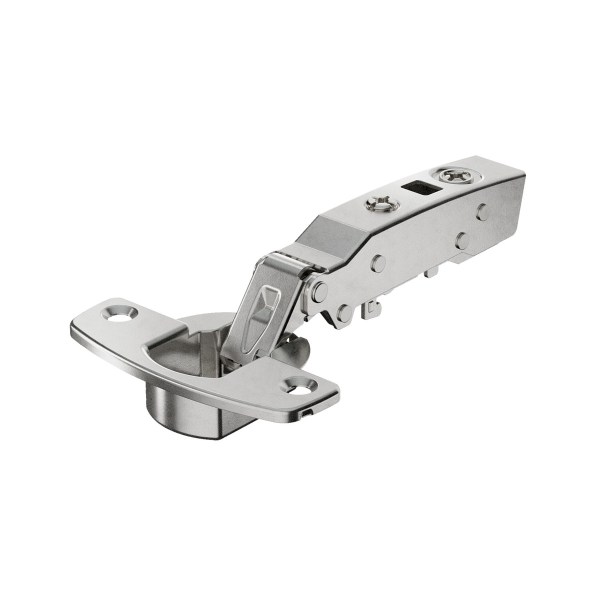

Hettich Sensys 110° hinge with integrated silent system
$62.67
$100.27
Hettich Sensys 110° hinge with integrated silent system and soft close feature Design 90° construction Door type Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm) User friendly features with integrated silent system Door mounting option overlay Opening angle 110 ° Min. door thickness 15 mm Max. door thickness 24 mm Cup version TH 52 Base 12.5 mm Cup diameter 35 mm Cup depth 12.8 mm Type of installation for screwing on Hinge surface finish steel nickel plated Drilling pattern TH 52 x 5,5 mm Diameter of mounting hole Centre punch Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment 2 mm / -2 mm Integrated depth adjustment 3 mm / -2 mm Mounting hole – Stay closed function Yes Finish nickel plated EAN 4023149030901 Order no. 9071205
