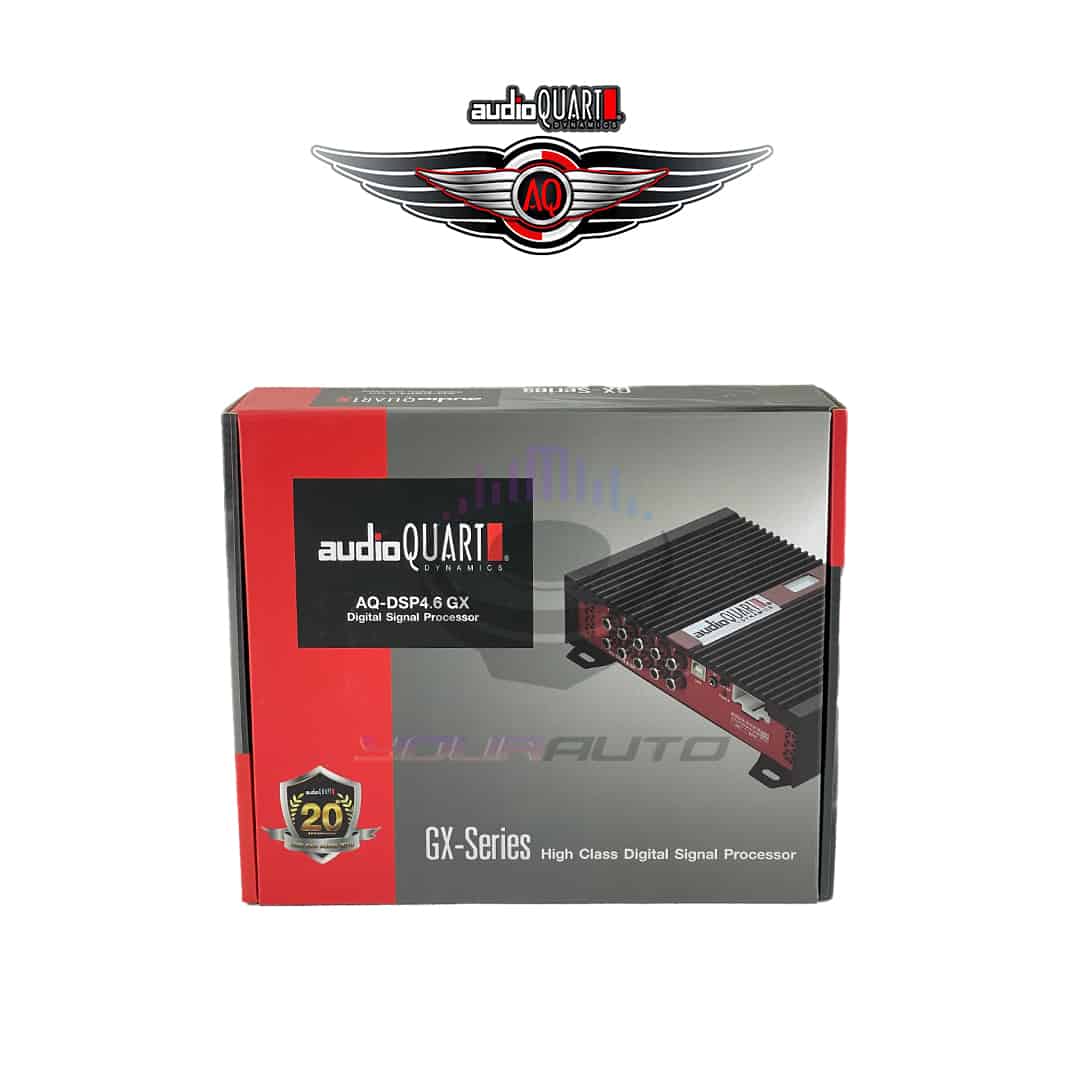

AQ-DSP4.6GX Digital Signal Processor

Specification : Power Supply : Voltage : 11-15 VDC Idling Current : 0.4 A Switched off without DRC : 2.5 mA Switched off with DRC : 4 mA Remote IN Voltage : 7-15 VDC (1.3 mA) Remote OUT Voltage : 12 VDC (130 mA)   Power Output : Effective Power : 4 x 25W Peak Power : 4 x 75W   Signal Stage : Distortion – THD @ 1kHz, 1V RMS Output : 0.005% Bandwith @ -3 dB : 10-22kHz Master Input : 95 dB Channel Separation @ 1kHz : 88 dB Input Sensitivity (High Level) : 2-15V RMS Max Output Level (RMS) @ 0.1% THD : 4V RMS   Input Stage : High Level (Speaker) : FR – FR FL – FL RL – RL RR – RR   Output Stage : Low Level Output : CH1 Ch2 Ch3 Ch4 CH5 Ch6 Low Level Input : Ch1 Ch2 Ch3 Ch4   Connection : From / To Personal Computer : 1 x USB / BB (1.1/2.0) 5M   Crossover N.5 (each output channel) Filter type : Full / High Pass/ Low Pass/ Band Pass Slope Setting : 6/ 12/ 18/ 24/ 30/ 36/ 42/ 48 dB Crossover Frequency : 68 steps @ 10-20kHz Phase Control Independently set to each channel : 0*-180* Time Delay Independently set to each channel : 0-15MS
