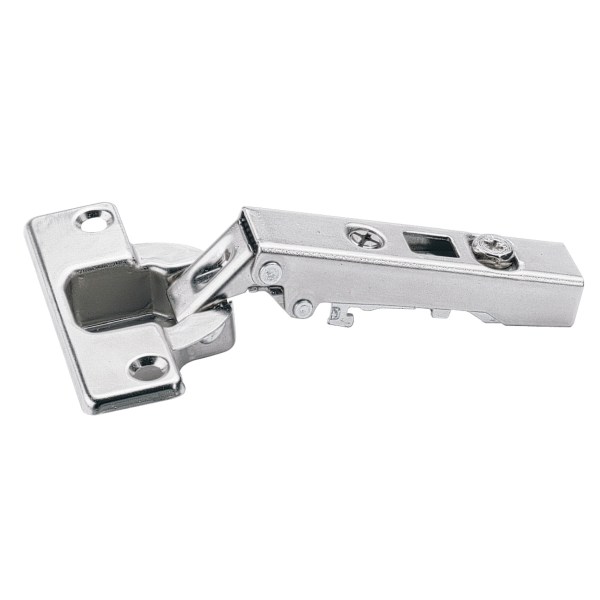

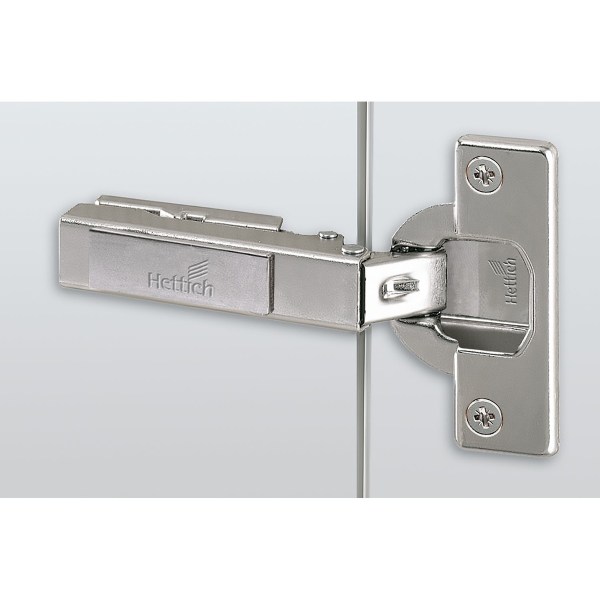

Hettich Intermat 110° hinge (Intermat 9943) overlay

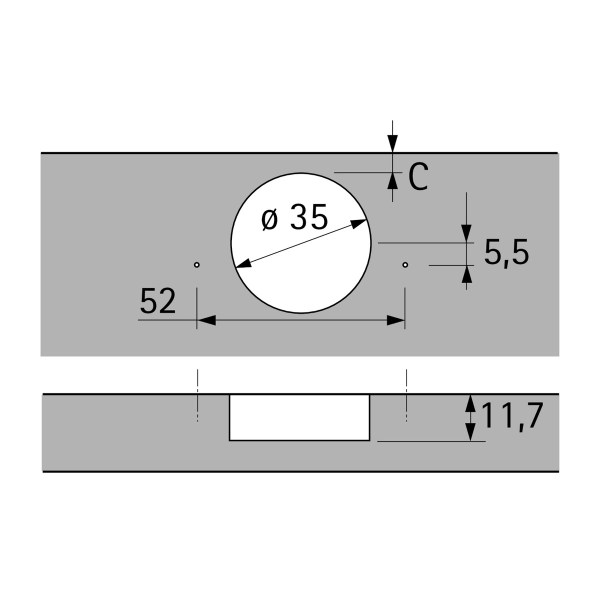

Design 90° construction Door type Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm) User friendly features without integrated silent system Door mounting option overlay Opening angle 110 ° Min. door thickness 15 mm Max. door thickness 25 mm Cup version TH 42 Base 12.5 mm Cup diameter 35 mm Cup depth 11.6 mm Type of installation for screwing on Hinge surface finish steel nickel plated Drilling pattern TH 52 x 5,5 mm Diameter of mounting hole Centre punch Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment 2 mm / -2 mm Integrated depth adjustment 2.5 mm / -1.5 mm Mounting hole – Stay closed function Yes EAN 4023149068058 Order no. 48049
